Framing a piece of art, be it an original oil painting by an established artist, a favorite photo, or even a masterpiece from the hand of a grandchild, requires making some choices. Do you want a classic-looking frame with major molded accents and multiple shadow lines built in? Or would simple lines and basic shapes set off the art in a more pleasing way? The choices are highly subjective and will vary from one person to the next. Curiously, that same level of subjectivity is in play when it comes to making a picture frame. Which is one reason that, when it came to designing a couple of picture frames, it was a very difficult effort. Everyone in the room had good ideas, strong opinions and arguments in their favor. Which, of course, meant that nothing was agreed upon.

After working on many samples using a multitude of router bits, we focused on creating interesting frames with a minimum number of bits.

So, with that in mind we decided to just go into the shop and proceed with two main goals. The first, to come up with two attractive but very different styles of picture frames. The second was that they should not require a builder to purchase 10 additional router bits just to make them.

Classic

After a few false starts and several mock-ups, those goals were achieved in the two frames you see: one a more traditional-looking frame made from mahogany, and one more modern-looking, made from maple and padauk. In total, they use four different router bits. The “classic” picture frame uses three cutters and the “contemporary” uses only two.

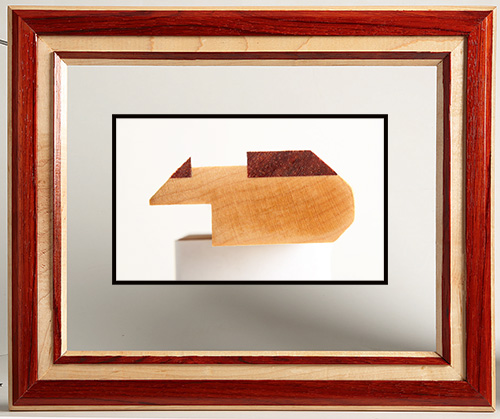

Contemporary

Wood species choice is another variable that is fairly subjective. If the padauk stock in the contemporary picture frame looks a tad too orange for you, perhaps by substituting cherry you can achieve a nice contrast with a more subdued hue. Or maybe you like a strong contrast but would prefer it to be domestic walnut — that’s your call.

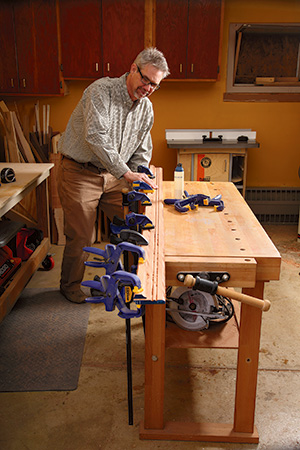

One useful trick when laminating long moldings together is to use a flat surface like a workbench to keep the piece flat as the glue cures. The resulting assembly stays dead-flat out of the clamps.

In the same way, you may prefer walnut over mahogany in the classic frame, or red oak, ash or cherry, to name a few. Some might make the picture frame from yellow poplar and paint it.

Milling the Classic Frame

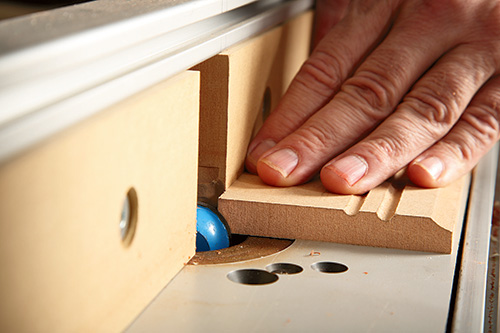

A mock-up of the main piece of molding for the classic picture frame was made from MDF. The mock-up helps set up the cove bit in the router table  to form the mahogany molding. Note the orientation of the stock.

The main molding of the classic frame is formed in six steps. See the Drawings for details. With the 1/2″-thick stock cut to width, set up a 3/4″ radiused cove bit in your router table. As you can see in the photos, how you hold the stock against the fence will affect the shape of the cove you form on the wood. Start with the wide face of the stock held against the face of the fence and run the length of the stock through the bit. Although not shown in the photos, a featherboard (or even two) will give you added control if you are shaping long pieces of stock. How much stock you need to shape will be determined by the size of the photo or piece of art that you will be framing. It’s a good idea to figure that out before you get started. Now before you get worried, the photos above were shot to show you proper stock orientation. The bit was not spinning and the guards are removed so you can see things clearly. (No fingers were injured during the making of these moldings.)

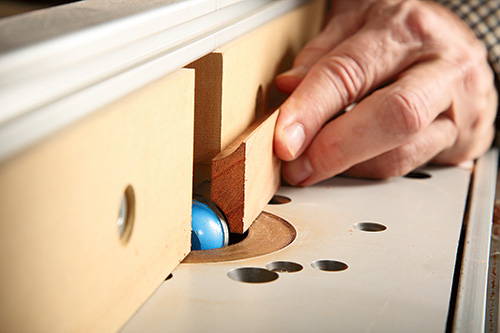

The cove cut on the outside edge of the classic frame’s main molding is made by changing the stock’s orientation — running it flat on the table’s surface. No change to the fence or the bit’s height is required.

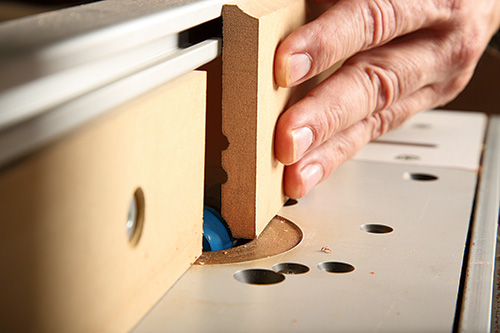

The next cut will form the back (outside) edge of the main molding. Make this with the face of the wood flat against the router table top. Take a minute to inspect the cuts you have made, to be certain that you did not waver in your cut. You can go back and fix any high spots if you need to.

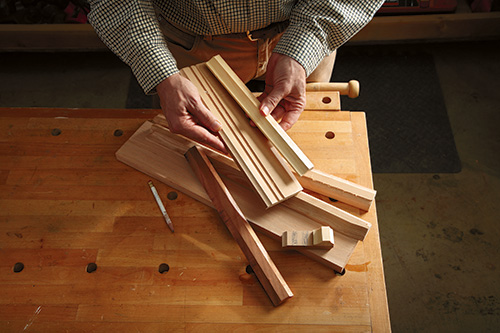

Use the same bit and settings to make the first cut on the classic frame’s accent molding. One of the advantages of this design is that you can achieve varied-looking coves with only a few bit adjustments.

Now grab the accent molding stock, which you will need to have cut to width from 1/2″-thick stock as well. Again, look to the photos and the Drawings on the next page for details. For the last cut, you will need to drop the router bit just a hair to get the shape right. With that done, chuck a core box bit in the router and shape the flutes into the main molding. Take some time to sand your pieces and then get ready to glue them together. This is best done on a workbench. Your last routing step is to use a straight bit to form the rabbet for the back of the frame, which will capture the art. The depth of the rabbet will be determined by how the art will be mounted and whether there will be glass in front of the art. You will need to figure that out before you cut the rabbet.

Only when making this last cut with the cove bit do you need to change the setup. And all that is required is lowering the bit by about 1/16” to get the last shape on the accent molding.

Miter-cut the frame molding you’ve just completed to length. A miter saw works well for this precise task. Now glue and clamp the pieces together, and you are nearly done. Give the frame a final sanding and apply your choice of finish to complete the project. A hanger strip is a good way to make the task of hanging
the frame on the wall easier.

Contemporary Frame

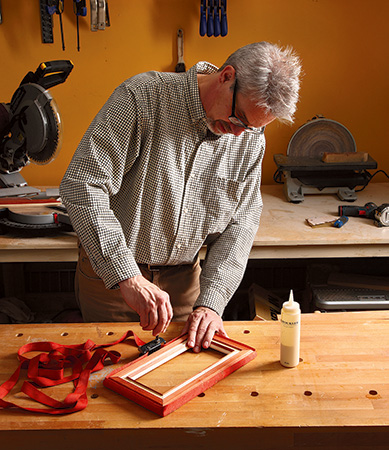

Band clamps work well for frame glue-ups. After the glue cures, remove squeeze-out, give your frame a final sanding, apply the finish and voila: you’re done!

The process of making the contemporary frame is even easier than making the classic frame. You only need a 3/4″-diameter straight bit and a piloted 45° chamfer bit.

With the 3/4″-thick stock ripped to its proper width, form the first of three rabbets in the wood, using the Drawings as a guide. When you’ve completed all the rabbets, rip the 1/4″-thick accent stock to width and glue it in place. When the glue on the last piece has cured, chuck the chamfer bit in the router table and shape the three edges as shown in the Drawing. Once again, some sanding before you cut the pieces to length is a good idea, then step to the miter saw to cut your miters. Miter-cut the molding pieces to length, dry fitting the joints to test the accuracy of the miters. A band clamp is one preferred method for gluing and clamping up miter joints.

When the glue has cured, remove the squeeze-out and do a final sanding. Apply your finish, and the project is complete. Picture frames make great gifts and are fun projects to do. And they are well-suited to a small shop environment.

Router Bits

A total of four router bits were used to make the two picture frames above. The contemporary frame used only a straight bit and a chamfering bit. The classic frame used the core box bit, straight bit and the bearing-guided cove bit.

Straight Bit (3/4″ Diameter x 1-1/4″) #40359
Chamfer Bit (45 Degree x 1-7/16″ Dia.) #25162
Cove Bit (3/4″ Radius x 7/8″ H) #91540
Core Box Bit (1/4″ Dia. x 1/4″ H) #90891

Download the Full-Size Side View Drawings.
