Over the past few eZines, we’ve had some discussion about shooting boards and about the terminology that refers to a “horn” on a mortise and tenon. To clear things up, we asked master woodworker Ian Kirby, a frequent writer for Woodworker’s Journal magazine, to take on these explanations. – Editor

Shooting Board:

“Shooting is a common term in hand tool solid wood woodworking. To ‘shoot an edge’ is to plane it straight and square to the face. To ‘shoot a drawer’ is to plane it to fit its opening because it’s made oversize to begin with. These expressions lead to a ‘shooting plane’ – a loose term for a long plane which will plane a long straight edge. A shooting board is necessary to shoot the end of a fairly small piece of wood. These days, a good chop saw blade will do most of the work of a shooting board: cut to length and leave a clear cut end. The plane doesn’t cut the shooting board because the mouth of the plane is ‘blocked’ at both edges so the blade is narrower than the sole of the plane and the guide it runs on is planed to a slight angle, 3 to 5 degrees. The plane you use should be an 05-1/2 or bigger (an 06 or an 07). You need the heft of the tool to cut the end grain clean and clear. The blade has to be sharp. The amount it projects and at what angle is up to you. The cut result on the workpiece will tell you how to make any adjustment.

“In any event, you can only take thin slices. How much and at what angle you project the blade, how and where you press on the plane as you use it, are variables which add up to the fact that using the shooting board is the only way to learn how to use it.” – Ian Kirby

Mortise & Tenon Nomenclature

“Each type of M&T has a name. There is no ‘regular’ M&T. All of them take their name from the configuration of the tenon. A ‘stopped M&T’ stops somewhere in the mortise piece. Sometimes referred to by the unknowing as a ‘blind M&T’– a silly expression. Don’t use it. A ‘through M&T,’ as you would imagine, has the end of the tenon visible – the mortise goes right through the workpiece. This allows for the insertion of wedges, a ‘through wedged M&T.’ That said, there is a joint called a ‘fox tail M&T.’ It’s a stopped tenon with wedges…another time.

FBHorn

“‘Twin M&T’ is two tenons side by side: this doubles the glue area. A ‘double M&T’ is one tenon above the other with a wide gap between on a wide rail, as in the kicker (bottom) railof a door. A single very wide tenon causes the cheeks of the mortise to belly out when it’s glued.

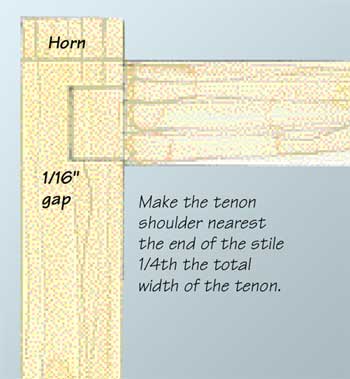

“A horn is an extra length of wood, an inch to inch and a half long left beyond the eventual edge of the rail.

“Let’s say you are making a table. Four legs and four rails. M&T into the legs at the top. A horn is an extra inch to inch and a half left at the top of the leg. It does two things. It allows you to chop the mortise to within 3/8 or so of the eventual top of the leg without breaking out what would be short grain as you lever and pound the mortise chisel. It also serves to prevent splitting the same shortgrain at glue-up time when the viscosity of the glue makes an already tight joint even tighter. After the glue is cured, the horn is cut off.” – Ian Kirby
