El Tovar Hotel Chair

El Tovar Hotel Chair

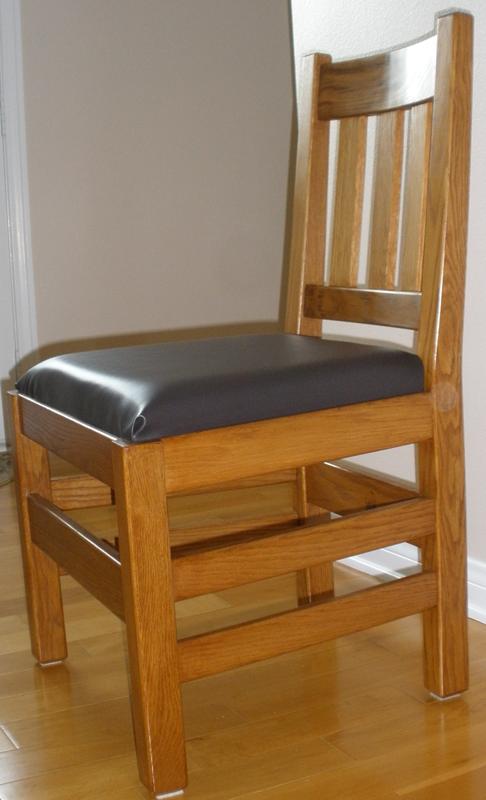

Attached are photos of the El Tovar Hotel Chair from the December 2008 issue of Woodworker’s Journal.

Finish notes

  • General Finishes golden oak (WB) gel stain
  • Minwax Antique Oil Finish
  • Minwax Polyurethane Gloss

Construction notes

  • The legs were laminated from 3/4″ white oak with the front and rear faces covered with 1/8″ white oak to hide the lamination.
  • Mortise and tenons are all 3/8″ thick by 3/4″ deep.
  • The front legs are splayed about 7.5° from right angles.
  • The front rails were cut to length and tenons cut per measurements taken during the dry fit process.
  • All mortises are square to the surface.
  • The angled tenons were cut on the table saw using a tenon jig in the right angle position and the blade at 82.5°.
  • The tenon shoulders were cut with the blade at 82.5° using a repeatable miter gauge set to 82.5°.
  • The seat is supported by 1/2″ Baltic Birch with four breathing holes.
  • The seat back rails were cut to length and the tenons added before the curved surfaces were cut on a band saw.
  • The mortises in the seat back rails were cut using a simple jig to hold the rail at the appropriate angle.

– Rich Flynn; Huntington Beach, California
